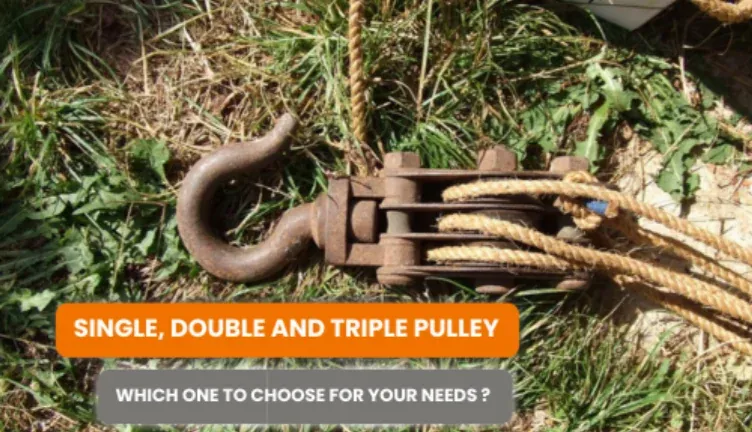

The pulley is an essential mechanical transmission tool that simplifies motion transfer and force distribution in various systems. There are several types of pulleys: single pulley, double pulley and triple pulley. Each has specific characteristics adapted to varied needs. In this article, we present the particularities of each type to help you choose the one that best meets your power transmission projects.
What is a simple pulley and when to use it?
The single pulley is the basic model of pulley systems. Easy to install and use, it is often preferred for simple force transmission tasks.
Characteristics of the single pulley
A simple pulley consists of a single wheel around which a belt is rolled up. This type of pulley is generally attached to a stable support, allowing the applied force to be redirected. Although the single pulley does not offer any real advantage in terms of effort reduction, it changes the direction of the force, thus making certain maneuvers easier.
The single pulley is also compact, lightweight and easy to integrate into transmission systems, making it a common choice for one-off mechanical transmission work or simple rotation systems.
Advantages and disadvantages of single pulley
Benefits :
- Simplicity of use and installation.
- Ideal for redirecting force without requiring complex equipment.
- Lightweight and easily integrated into various transmission systems.
Disadvantages:
- Does not reduce the necessary effort: the force exerted must be equal to that of the load transmitted.
- Not very suitable for significant force transmissions due to its lack of gear ratio.
When to choose for a simple pulley?
The single pulley is ideal for projects that do not require a large reduction in applied force. For example, it is often used in mechanisms where belt redirection is essential, such as in certain ventilation or conveyor systems. If your goal is to simply change the direction of force without reducing effort, the single pulley is an excellent choice. However, for more powerful transmissions or high-current systems, it may be better to look at a double or triple pulley.
Why choose a double pulley for your mechanical transmission?
The double pulley offers greater transmission capacity thanks to its force reduction system. It is particularly useful for tasks where you want to reduce the effort required without installing a complex transmission system.
Operation of a double pulley
A double pulley is made up of two wheels aligned on the same axis, allowing the belt to be wound alternately around the two wheels. This mounting splits the force needed to transmit a load, allowing the user to transmit greater movement with less effort.
Furthermore, the double pulley allows for better load distribution, which contributes to more stable and secure handling in transmission systems. It is an ideal system for projects that require both strength and stability.
The advantages of a double pulley to reduce effort
The main advantage of the double pulley is its ability to reduce the force required to transmit a load. Here are some benefits of its use:
- Reduced effort: thanks to its two-wheel design, the effort required is halved, allowing greater movements to be transmitted without having to use excessive force.
- Increased stability: with the load distributed over two points, the double pulley offers better control during movements, reducing the risk of misalignment or premature wear.
- Suitable for frequent use: for regular transmission projects, the double pulley offers better durability and increased comfort during operations.
In short, the double pulley is an effective choice for repetitive transmission systems or for heavier loads, in industrial contexts such as manufacturing or transportation.
The triple pulley: for what specific needs is it recommended?
The triple pulley is the most advanced model among pulleys, designed to meet the most demanding mechanical transmission needs. It is particularly suitable for extremely heavy loads and situations requiring maximum force reduction.
How does a triple pulley work?
A triple pulley consists of three wheels mounted on the same axis. The belt passes successively around each wheel, creating an even greater force reduction than the double pulley. With this assembly, the effort required is divided by three, making it possible to transmit very heavy loads with a minimum of force.
The complexity of this system, however, requires more careful installation and handling, often with specific mechanical transmission skills. Triple pulleys are common in industrial transmission operations, in high power systems, or on high precision projects requiring reliable equipment.
The benefits of a triple pulley for heavy loads
Using a triple pulley has specific advantages in cases where very heavy loads need to be moved or transmitted in a stable manner. Among these advantages:
- Maximum reduction in effort: by dividing the force required by three, it makes it possible to transmit exceptional loads with less mechanical fatigue.
- Optimal load control: Better force distribution reduces the risk of component misalignment or damage, which is essential in critical systems.
- Suitable for professional environments: the triple pulley is designed for environments where intense mechanical transmission is common, such as heavy industrial installations or environments requiring high precision.
In what situations should you choose a triple pulley?
The triple pulley is recommended for professional uses or complex projects where safety, precision and transmission capacity are priorities. It is also useful in extreme environments or for transmission systems requiring significant force and great stability. For individuals, it may be less necessary except in the case of very specific projects, because it is more expensive and requires more technical installation.
The choice between a single, double or triple pulley depends largely on the type of load to be transmitted and the frequency of use. The single pulley is perfect for basic needs where only force redirection is required. The double pulley, for its part, provides a balance between effort and stability, ideal for regular transmission projects. Finally, the triple pulley is the solution of choice for heavy loads and demanding professional contexts.
By considering the features and benefits of each type of pulley, you will be able to choose the one that best suits your needs and accomplish your mechanical transmission tasks efficiently and safely.
