Looking for a linear guide?



Our buying guide is here to help you choose an NH or NS series linear guide,

The purpose of this guide is to show you the different types of linear guide available on the market.

It includes detailed technical information and advice to help you choose the guide best suited to your application and budget.

Choisir un guidage linéaire Nh/NS
Guidage linéaire standard NH NS
choix de guidage lineaire serie NH / NS

Looking for a linear guide?



Our buying guide is here to help you choose your product.

The purpose of this guide is to show you the different types of linear guide available on the market.

It includes detailed technical information and advice to help you choose the guide best suited to your application and budget.

Why choose a NH / NS linear guide?

Choosing an NH / NS linear guide offers the following advantages:

Significant improvement in service life

The new NH and NS rails, based on the LH and LS series characterized by reliability and performance, a significant increase in service life has been achieved. A new ball groove geometry is introduced, which has been developed using NSK's state-of-the-art tribology and analysis technologies. Due to the optimized distribution of contact surface pressures, rated life has been significantly increased.



Compared with the LH / LS Series, the rated load capacity of the NH and NS Series has been increased by a factor of 1.3, while service life has been doubled*. These features enable you to design a machine with a longer service life and reduce the size of the machine. As a result, your design capabilities are greatly enhanced.

* values representative of the series.



Ball path with excellent properties

By re-examining ball track design practices, NSK has achieved smooth ball circulation and reduced noise levels. As a result, the NH and NS series are better suited to high-speed applications than the LH / LS series.



Interchangeable generations

For NH rails, all mounting dimensions are identical to those of the LH and SH series. The same applies to NS rails with LS and SS series. Mounting dimensions such as mounting height, mounting width, mounting hole diameter/linear guide pitch, etc. remain the same as for conventional series. Interchangeable from size 15 to 65, possible assembly/disassembly of pads (except for miniatures, size 8 - 10 - 12), mounting dimensions are based on DIN and ISO 12090



High self-alignment capability (bearing direction)

Identical to the DF combination of angular contact bearings, the self-aligning capability is high because the point of intersection of the contact lines of the balls and grooves is on the inside. This increases the ability to absorb installation errors.



High load capacity in vertical direction

The contact angle is fixed at 50 degrees, increasing load capacity and rigidity in the vertical direction.

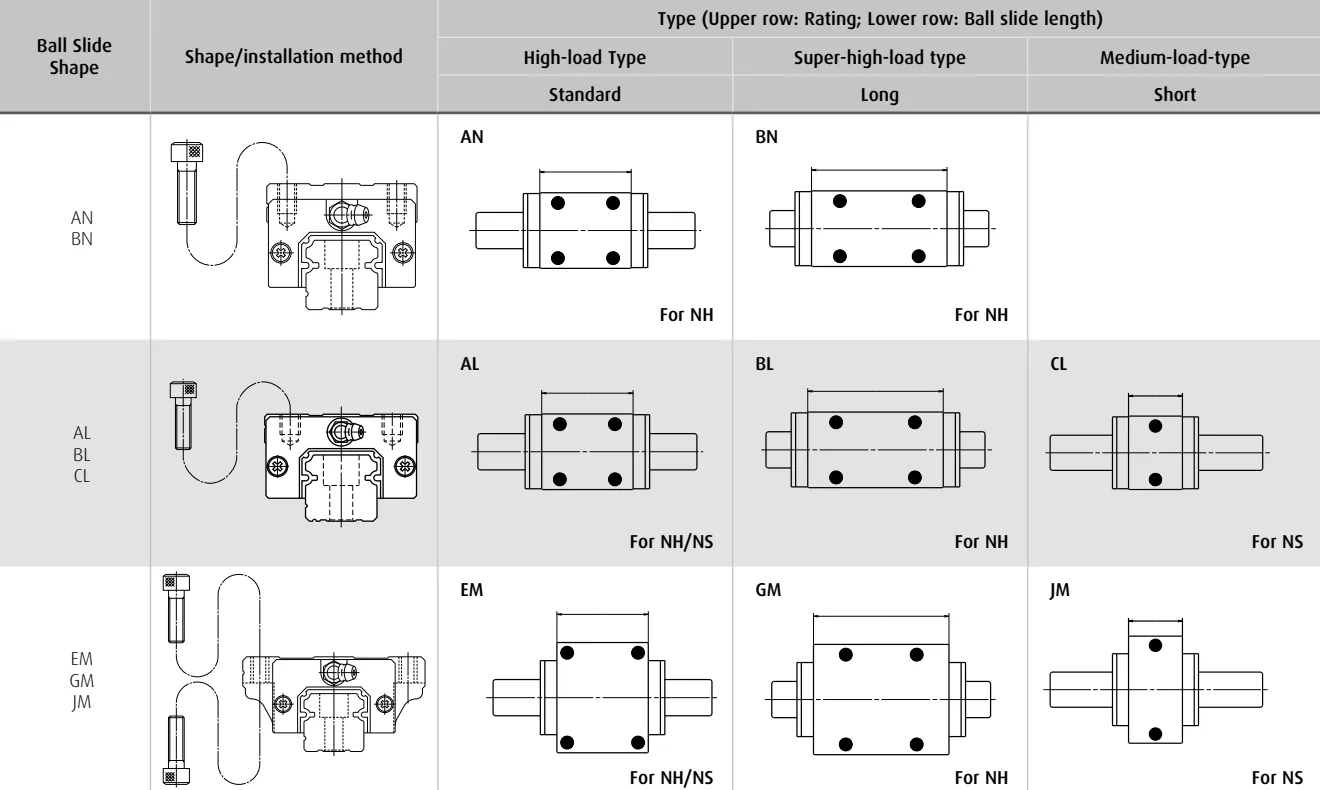

How to identify your guide shoe?

Use the table below to identify the criteria for determining the desired guide shoe.

What are the maximum rail lengths?

The table below shows maximum lengths according to series, material and size. These rails can be butted together on request.

longueurs des rails guidage linéaire

By following these tips, you should be able to choose the belts that are best suited to your application, and that operate safely and efficiently.
