CRS095NI Standard drive chains
Standard drive chains 06B-1, CRS095NI

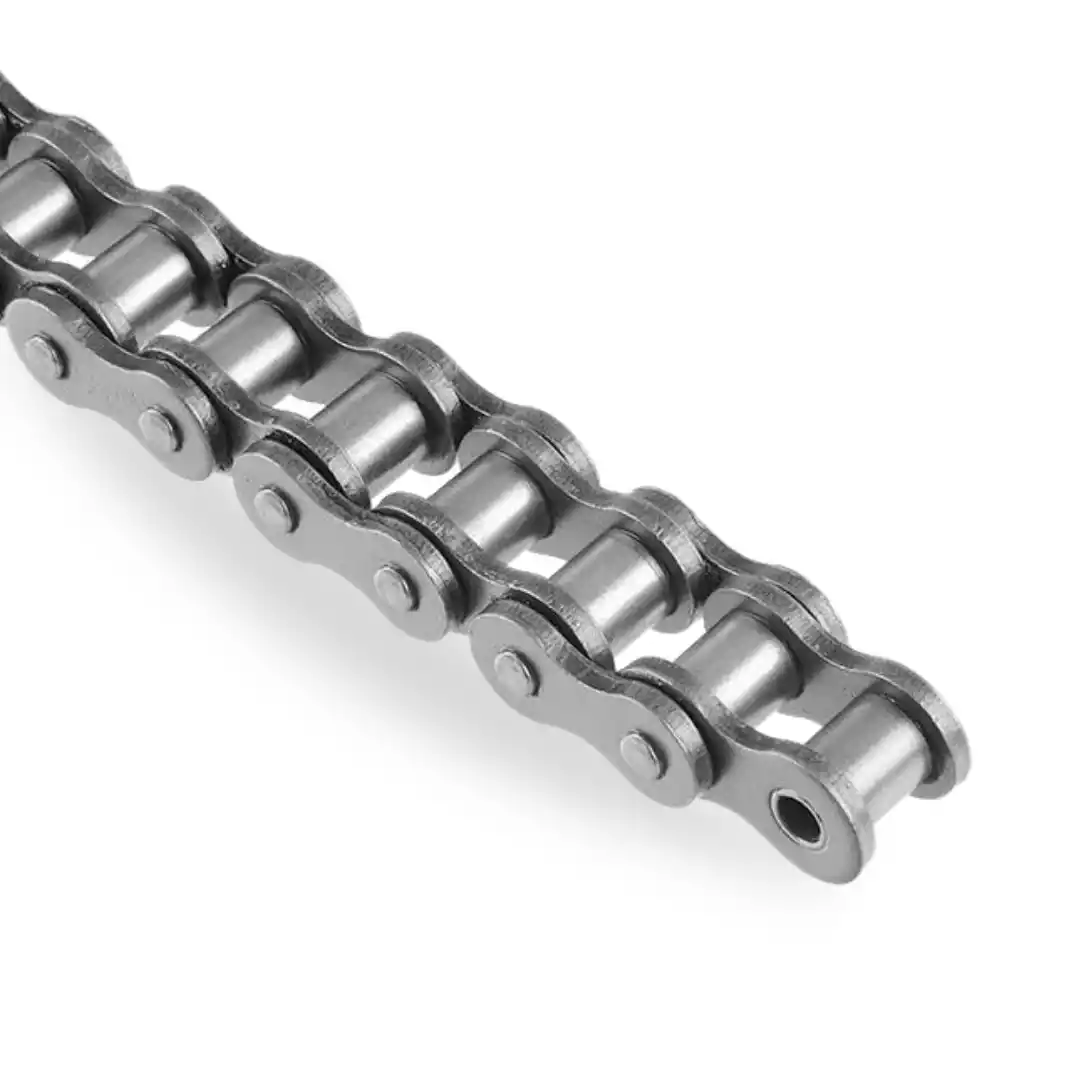

This picture may be non-contractual depending on certain models.
Description
Equivalent/ associated products
Features
Chains 06B-1, reference CRS095NI. Chains packaged in 5 metre rolls with quick release fastener. Single toothing.
Sub category
Standard drive chains
Type
Chains
Packaging
5m
Standard type
ISO
Toothing
Single
Material
Nickel-plated
Standard
06B-1
Breaking force (daN)
1040
Mass (Kg)
0.4100

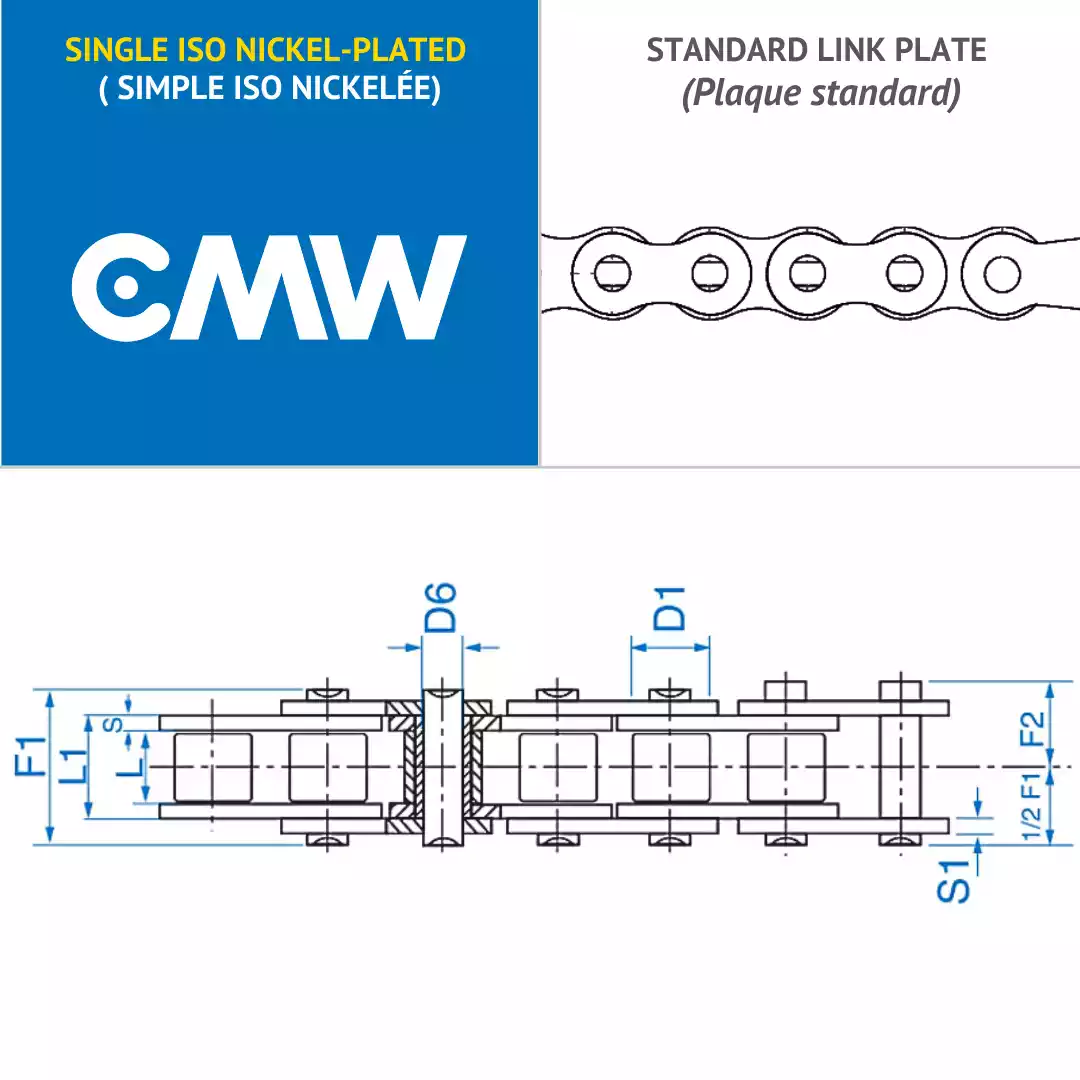

Product details
Metric Pitch (mm)
9.52
Imperial pitch (inch)
3/8 In
Inside width (L)
5.72
Link width (L1)
8.53
Ø Chain roller (D1)
6.35
Ø Axle (D6)
3.28
H (mm)
8.4
S (mm)
1.2
S1 (mm)
1
E (mm)
0
F1 (mm)
13.5
