AT10Z015-040 Synchronous pulleys - Metric profile
Synchronous pulleys - Metric profile, AT10Z015-040
This picture may be non-contractual depending on certain models.
Description
Equivalent/ associated products
Features
Synchronous pulleys - Metric profile - Pre-bored
in Aluminium, reference AT10Z015-040. Pulley of section AT10 with 15 teeth.
Sub category
Synchronous pulleys - Metric profile
Material
Aluminium
Bore
Pre-bored
Dimension type
Metric (mm)
Section
AT10
Metric Pitch (mm)
10
Number of teeth
15
Belt width (mm)
25

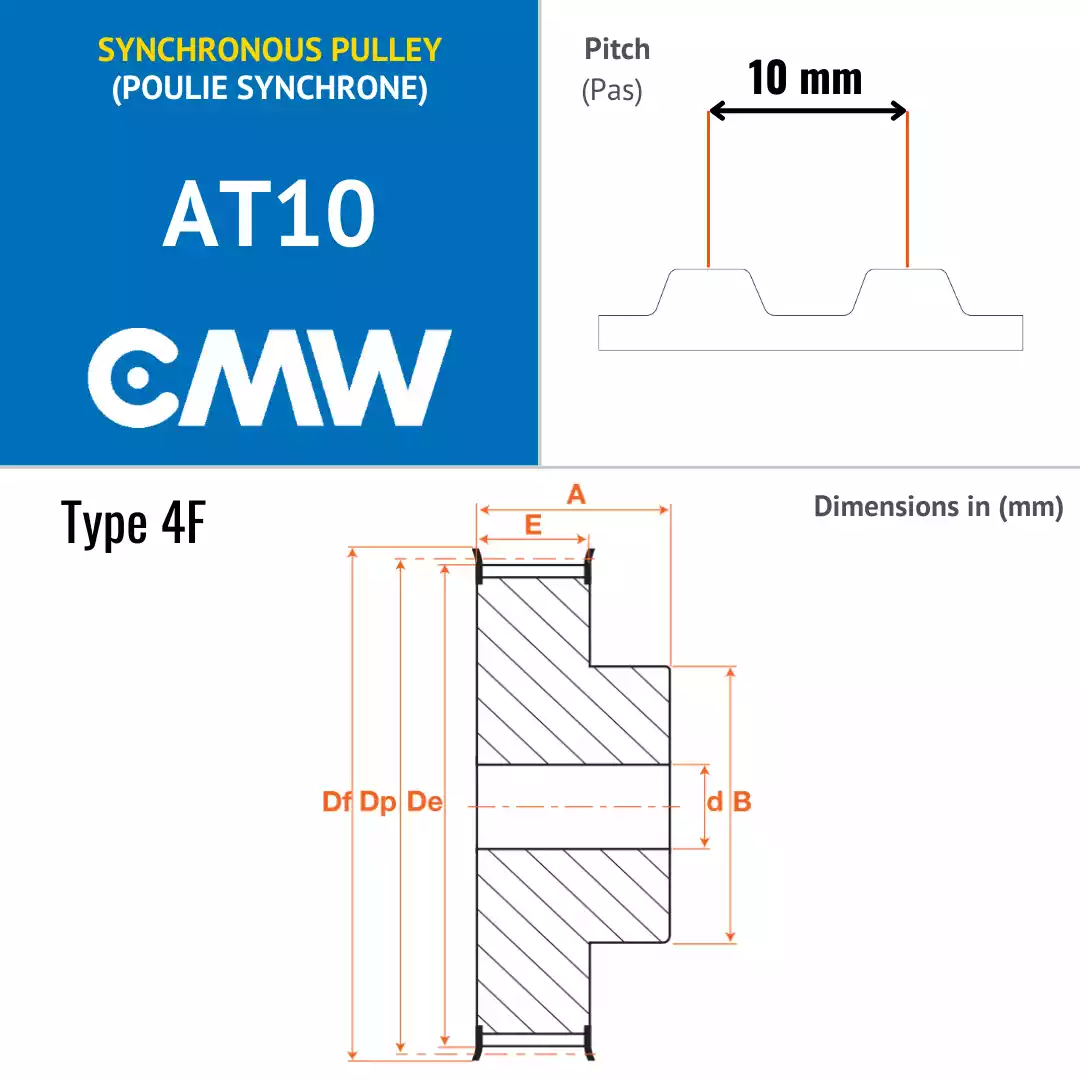

Product details
Def (mm)
51
Dp (mm)
47.7
De (mm)
45.8
Inside diam. (mm)
8
B (mm)
32
A (mm)
40
C (mm)
0
E (mm)
30
