14MZ028-040 Synchronous pulleys - HTD profile
Synchronous pulleys - HTD profile, 14MZ028-040
This picture may be non-contractual depending on certain models.
Description
Equivalent/ associated products
Features
Synchronous pulleys - HTD profile - Pre-bored
in Steel, reference 14MZ028-040. Pulley of section 14M with 28 teeth.
Sub category
Synchronous pulleys - HTD profile
Material
Steel
Bore
Pre-bored
Dimension type
Metric (mm)
Section
14M
Metric Pitch (mm)
14
Number of teeth
28
Belt width (mm)
40

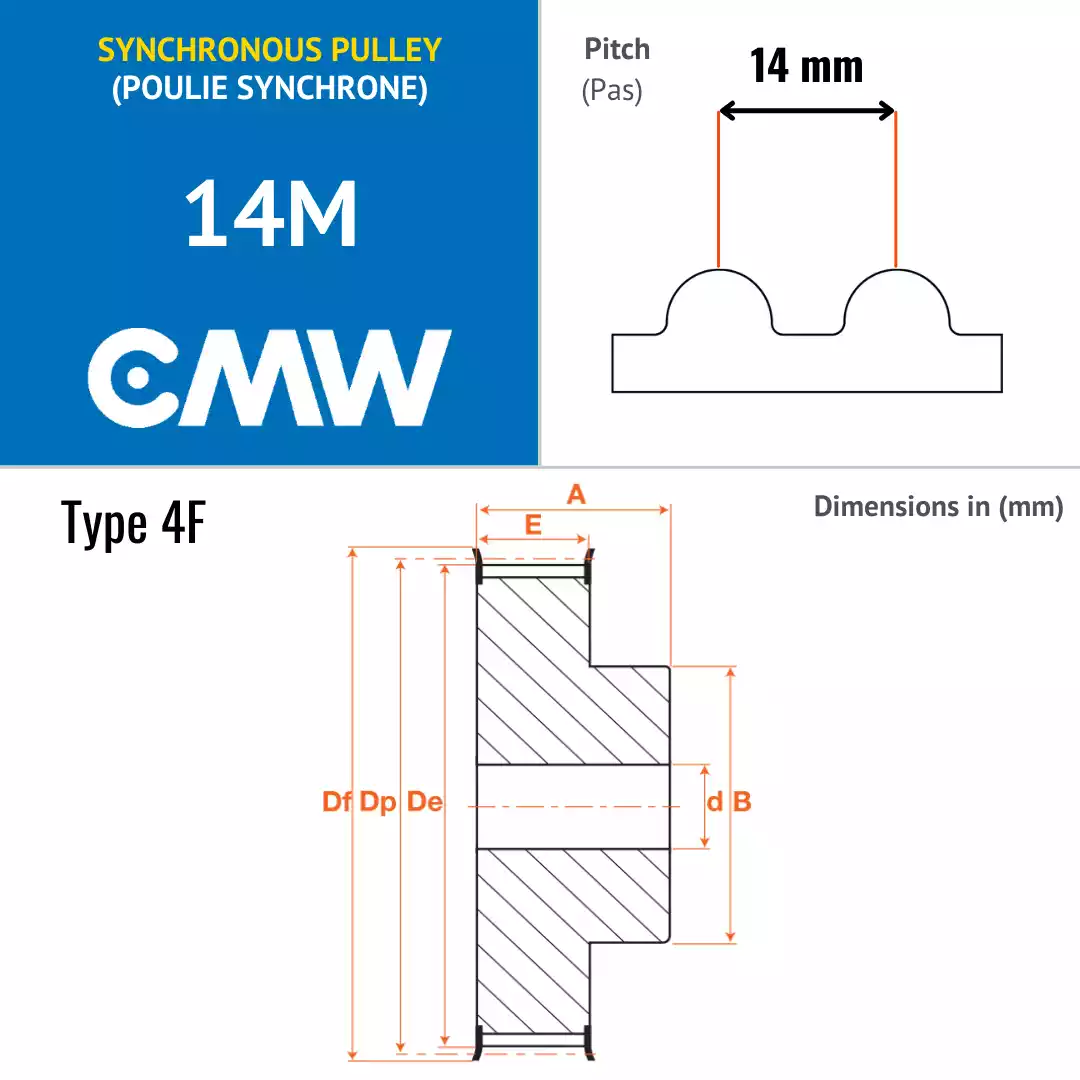

Product details
Def (mm)
128
Dp (mm)
124.8
De (mm)
122
Inside diam. (mm)
24
B (mm)
100
A (mm)
69
C (mm)
0
E (mm)
54
